Poly-Composite Security Glass

ArmourShield® ultra-high grade laminated armoured glass for protection of staff & property

ArmourShield® is a polycomposite-glass laminate that maintains the appearance of normal glass while offering significant protection from deliberate, sustained attack making it ideal for armoured glass requirements. Attack weapons simply bounce off the armoured glass. In the event the window glass surface is compromised, the tough inner-core of the polycomposite remains un-penetrated protecting individuals and property inside.

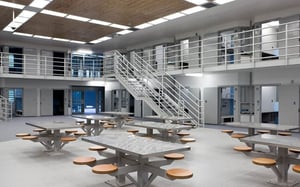

ArmourShield® protects the critical operational areas of buildings, houses, marine vessels and land vehicles where the threat of fire-arms is prevalent. Typically installed in prisons, detention centres, court houses, police cells and government offices. It is custom-constructed to meet clients’ specified protection levels in slowing down and restricting intruder entry that may range from unassisted forced entry to attack with simple hand weapons.

ArmourShield® comes in a number of thicknesses geared to provide a variety of security screen levels, resulting in protection from physical attack from five to thirty minutes (as detailed under AS3555.1 level 2). It must be installed in an approved framing system.

ArmourShield® Features & Benefits:

  • Superior attack resistance compared to standard laminated glass
  • Elastic properties mean weapons ‘bounce’ off the glass surface
  • Lightweight vs. glass-only products of similar thickness & attack resistance
  • Standard dimensions up to 2400mm (94″) x 1800mm (71″)
  • 2D curves (single radius and single axis)
  • Compatible with VisionInk®
  • Tinted glass available
  • 5- 30 Minute attack rating
  • Spall Panel prevents glass fragment spray on non-attack side of the armoured glass
  • IACS, AS 3555.1 Intruder Level 2

NB: Rigid aluminium or steel frame with edge cover at least as thick as the panel required for installation

Request A Quote
Get your Free No-Obligation Quote

View Our Security Glass Brochure

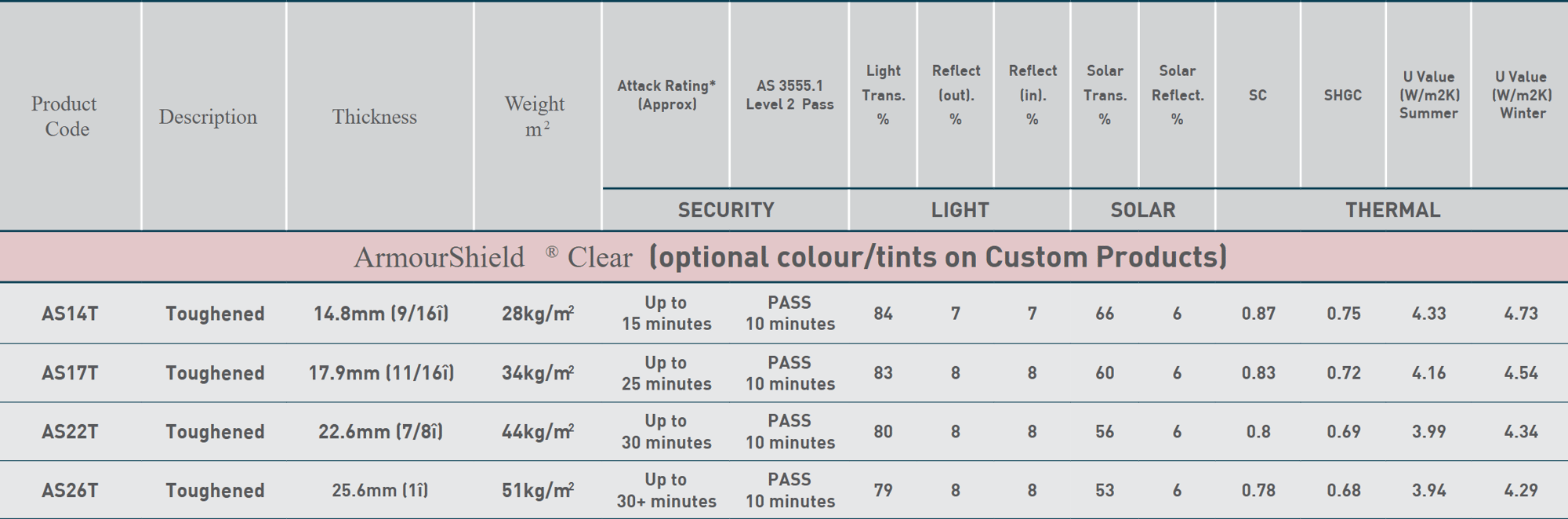

ArmourShield® Technical Specifications

For technical information about ArmourShield® click on the image above

ArmourShield® AS3555.1-2003 Test and Pass Results

ArmourShield AS14T

ArmourShield AS17T

ArmourShield AS22T

ArmourShield® Intruder Resistant Glass
